High And Low Temperature Climatic Test Chamber 3 Decks With Battery Cell

Name: High And Low Temperature Climatic Test Chamber 3 Decks With Battery Cell
Brand: DGBELL
Price: 1 USD

Quality High And Low Temperature Climatic Test Chamber 3 Decks With Battery Cell wholesale

Brand Name : DGBELL

Model Number : BTT-D3-80/BTT-D3-360

Certification : CE/ISO

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : Western Union, T/T, D/P, D/A, L/C

Supply Ability : 500 Sets per Month

Delivery Time : Negotiation

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.

Temperature range : B:-20ºC~+150ºC C:-40ºC~+150ºC D:-60ºC~+150ºC

Air supply method : Forced internal circulation, upper air outlet and lower air return

Temperature fluctuation : ±0.3ºC

Temperature rise rate : 1~3ºC/min on average throughout

Cooling rate : 1ºC/minute on average

Temperature uniformity : ≤2ºC

Temperature deviation : ≤1ºC

Observation window : Three-layer vacuum rigidized explosion-proof glass

Power supply voltage : AC380V 50HZ

Contact Now

3 Deck High and Low Temperature Climatic Test Chamber Price for Battery Cell

High And Low Temperature Climatic Test Chamber 3 Decks With Battery Cell

Modle	BTT-D3-80	BTT-D3-360
Test size(mm)	W450 xD450x H450	W1000 xD600x H600
	W130 xD1950x H1150	W130 xD1950x H1150
Temperature Range	B:-20ºC~+150ºC C:-40ºC~+150ºC D:-60ºC~+150ºC
Air supply Method	Forced internal circulation, upper air outlet and lower air return
Temperature Fluctuation	±0.3ºC
Temperature Rise Rate	1~3ºC/min on average throughout
Cooling Rate	1ºC/minute on average
Temperature Uniformity	≤2ºC
Temperature Deviation	≤1ºC
Observation Window	Three-layer vacuum rigidized explosion-proof glass
Test Holes	Test holes can be opened on both sides of the box
Cooling Method	Optional: air-cooled or water-cooled
Control Mode	Touch screen programmable PLC with USB interface, RS485 interface for computer control, special network control software for remote monitoring and data collection.
Inner Box Material	Galvanised sheet, powder coated, high temperature plasticised, 1.2MM thickness
Power Supply Voltage	AC380V 50HZ
Safety Protection	Automatic explosion-proof pressure relief device, explosion-proof chain, three-coloured light alarm device, remote control, smoke extraction device, fire extinguishing device, etc.
Communication Protocol	Open communication protocol with charging and discharging machine

Guangdong Bell battery testing chamber supplier, as the leading manufacturer of battery safety test equipment in China, the earliest enterprise dedicated in the R & D of battery safety test in China since 2005. We provide the overall test equipment solution for both lithium-ion consumer batteries and lithium-ion EV battery packs and modules, which comply with the relevant international test standards, such as IEC 62133, UN 38.3, UL 1642, ECE R100, UL 2580 and IEC 62619.

DGBELL lithium battery test chamber supplier provides a wide range of battery safety test equipments, from environment simulation test chambers to mechanical test chambers, including Temperature test chamber, altitude simulation test chamber, battery crush tester, short circuit battery test chamber, thermal abuse tester, drop tester, shock tester, vibration test system, etc.

DGBELL lithium battery test chamber supplier is working with many global enterprises, such as global smartphone companies, global battery manufacturers, EV manufacturers, Third-party Detection Institutions, etc. We provide reliable battery test equipments to our customers, ensure they deliver the high safety and stability performance batteries to the market.

Product Tags:

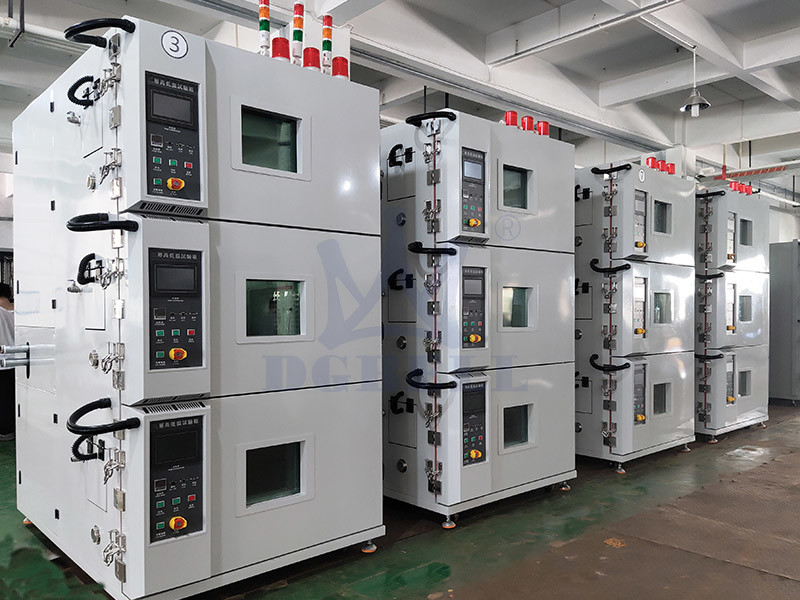

High And Low Temperature Climatic Test Chamber 3 Decks With Battery Cell Images
